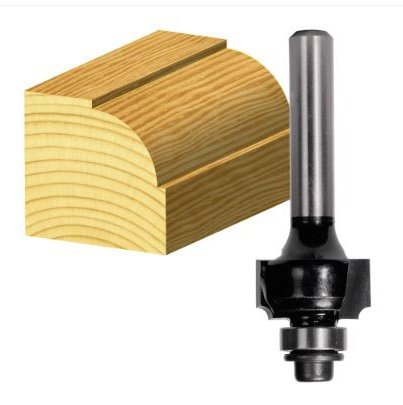

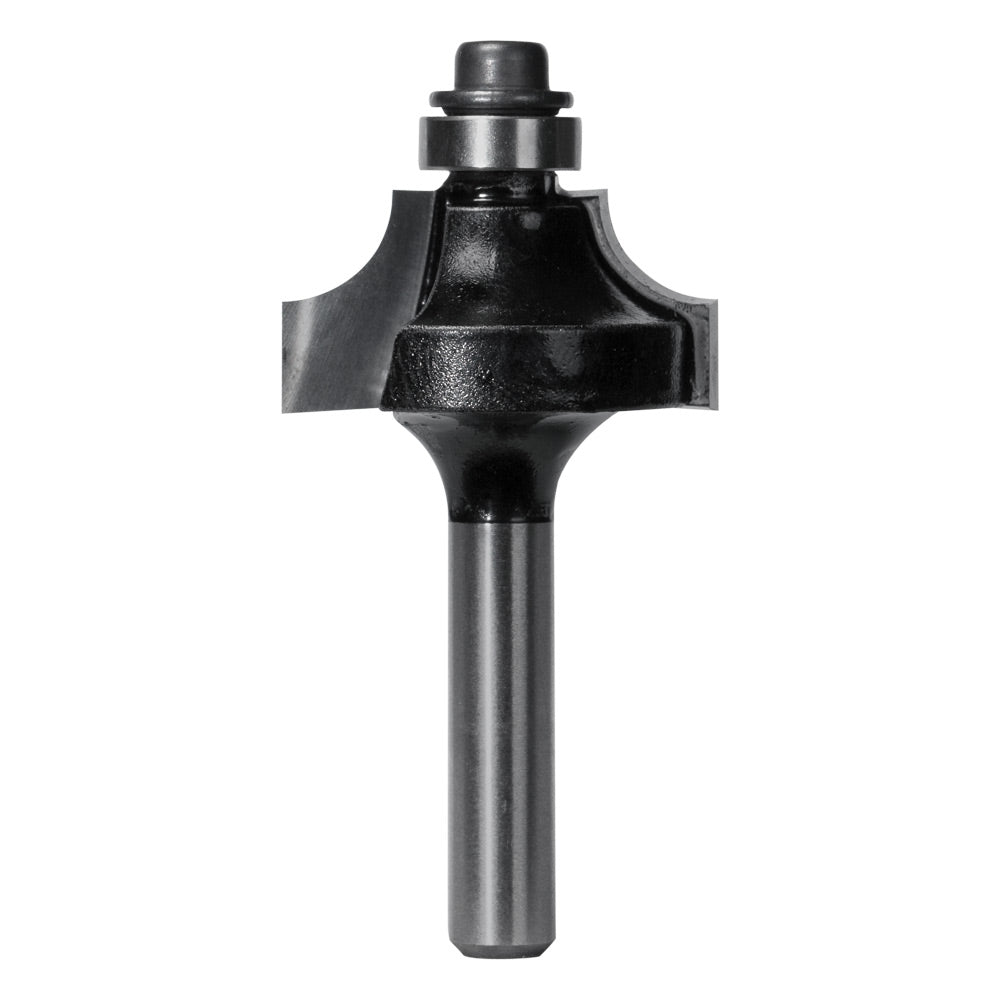

2 Flute Carbide Tipped Beading Bit with Ball Bearing Guide

• Smaller TB9 bearing leaves a 1/16″ edge bead
• Can be converted to rounding over bit by using bearing TB11
• Smaller TB9 bearing exposes bottom corner of cutter allowing it to cut the bottom bead
• Use machines height adjustment to drop top corner of cutter into the workpiece to create top bead
• Replacement bearing TB9

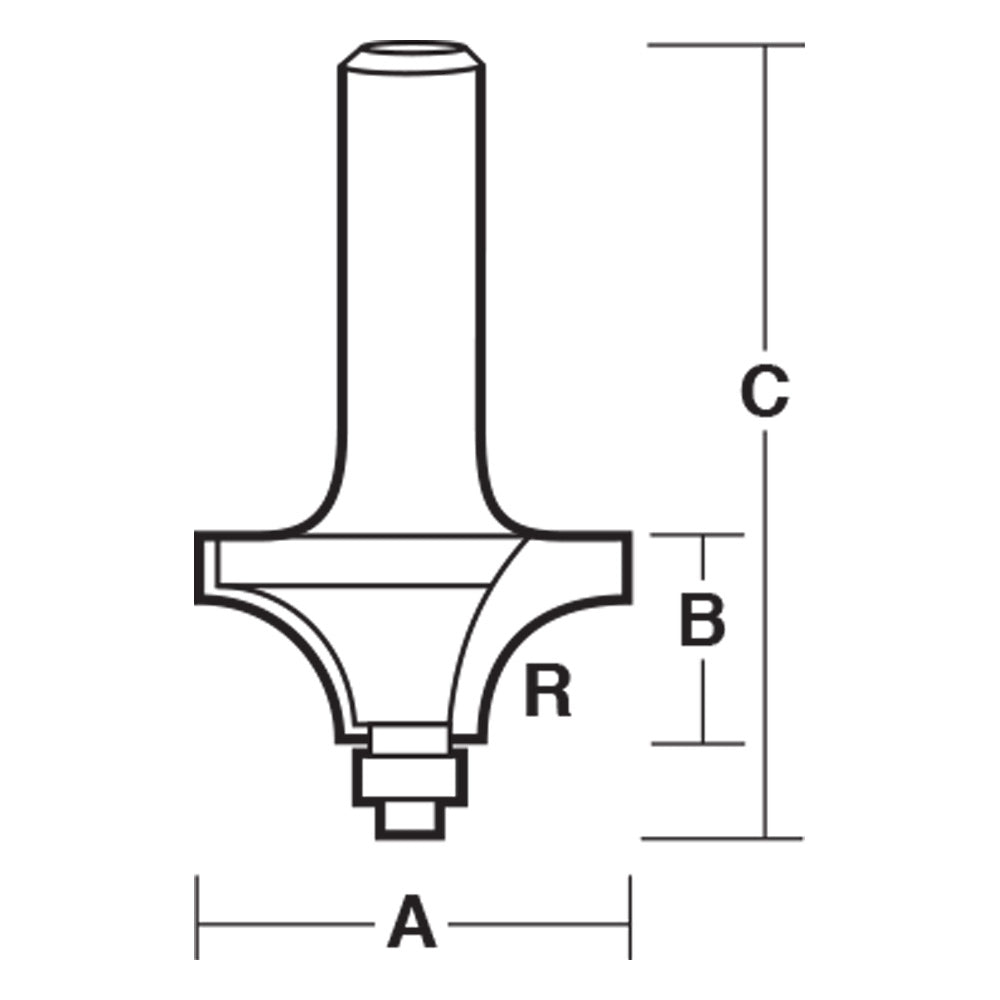

  Product Info

  • DESCRIPTION TYPE: Carbide Tipped
  • SHANK INCH: 1/2
  • RAD MM: 10.00
  • RAD INCH: 25/64
  • C INCH: 2-3/4
  • C MM: 69.70
  • B INCH: 21/32
  • B MM: 16.5
  • A INCH: 1-9/32
  • A MM: 32.7
  • Multiple: 1
  • Pack Quantity: 1
