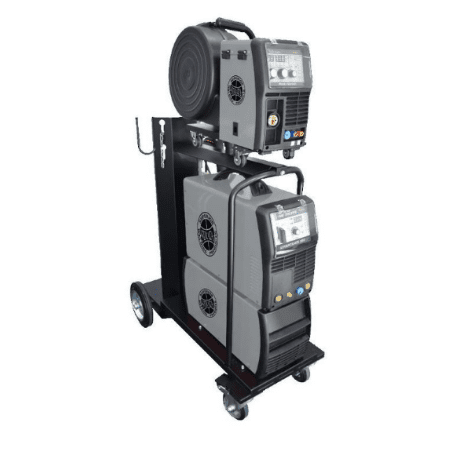

Strata AdvanceMig350C Pack 350A Compact Inverter MIG/MMA/TIG Welder Package (3 Phase)

AdvanceMig350 Pack - 350A Synergic Inverter MIG/MMA/TIG Welder - Unrivaled Precision and Performance

Experience the pinnacle of welding technology with the AdvanceMig350 Pack, a 350A Synergic Inverter MIG/MMA/TIG Welder that redefines precision and performance. Equipped with state-of-the-art synergic technology, these 3-phase machines boast full operational controls on the remote wire feeder, making them a breeze to operate. With a rich set of features, including a 4-roll wire feeder and integrated protection systems, these welders are designed for rugged, heavy-duty work, ensuring top-notch performance, reliability, and user satisfaction day in and day out.

Key Features:

• Intelligent digital wire feeder with all MIG controls and display located on the wire feeder control panel
• Digital microprocessor control system for superior & dynamic arc characteristics
• Optional integrated heavy-duty industrial trolley with a storage compartment option
• Optional extended 10m interconnect cable for added flexibility
• Modular power source for MMA, arc air gouging, and lift TIG welding
• Synergic MIG operation for optimal welding results every time
• Lift TIG operation with down slope and remote current control
• MIG waveform (inductance) control for precise arc control and smoother welding results
• Damage-resistant industrial casing with front panel protection
• Wire inching and gas purge control for efficient operation
• Safe and simple setup, easy to use with adjustable pre-flow, post-flow, burnback, and soft start settings
• 2T/4T trigger operation with crater control settings
• Adjustable arc force, hot start & automatic anti-stick control
• Dual digital display meters for accurate pre-setting and feedback of welding parameters & output
• Power source wind tunnel cooling construction for optimal performance
• Protection against environmental contamination

Accessories Included:

• 3m Air Cool Interconnecting Cable
• 3m Earth Lead with a heavy-duty earth clamp
• 4m MMA lead with a heavy-duty twist-lock electrode holder
• Professional MIG Torch
• Argon Gas Regulator/CO2 Cylinder Adaptor
• Gas Hose Clamp x2
• Wire Drive Roller 0.8/0.9mm 'V' Groove x2
• Wire Drive Roller 1.0/1.2mm 'V' Groove x2
• Wire Drive Roller 1.0/1.2mm flux-cored x2

Specifications:

• Power Source Dimensions: 525x240x445mm, Weight: 21kg
• Wire Feeder Dimensions: 600x290x480mm, Weight: 16kg
• Trolley Dimensions: 1050x440x1100mm, Weight: 32kg
• Storage Compartment Dimensions: 620x240x290mm, Weight: 11kg
• Complete Package Dimensions: 1050x44x1450mm, Weight: 90kg
• Input Power Supply: 400V AC 3 Phase 32A 50/60Hz
• Input Power Tolerance: +/-10%
• Maximum Input Current: 22A
• Generator Capacity: 15KVA
• Mig Output Voltage: 10V - 50V
• Mig Output Current: 40A - 350A
• MIG Duty Cycle: 500A@60%, 400A@100%
• Wire Feeding Speed: 2.4 - 18m/min
• MMA Current Output: 40A - 500A
• MMA O/C Voltage: 67V
• TIG Current Output: 40A-350A
• Insulation Class: IP23
• Standards: EN60974-1:2012
• MMA Rod Size: 1.6 - 6.0mm
• Warranty: Commercial 12 months, extends to 36 months
• Power Efficiency: 85%
• MIG Drive Rollers Available: 0.6/0.8/0.9/1.0/1.2mm V Groove, Knurled 0.8/0.9/1.0/1.2mm, U Groove 0.8/1.0/1.2mm
• MIG Wire Spool Size: D200/D300 5KG/15KG
• TIG Duty Cycle: 350A@60% 275A@100%
• TIG System: Internal solenoid gas control, Lift ignition
