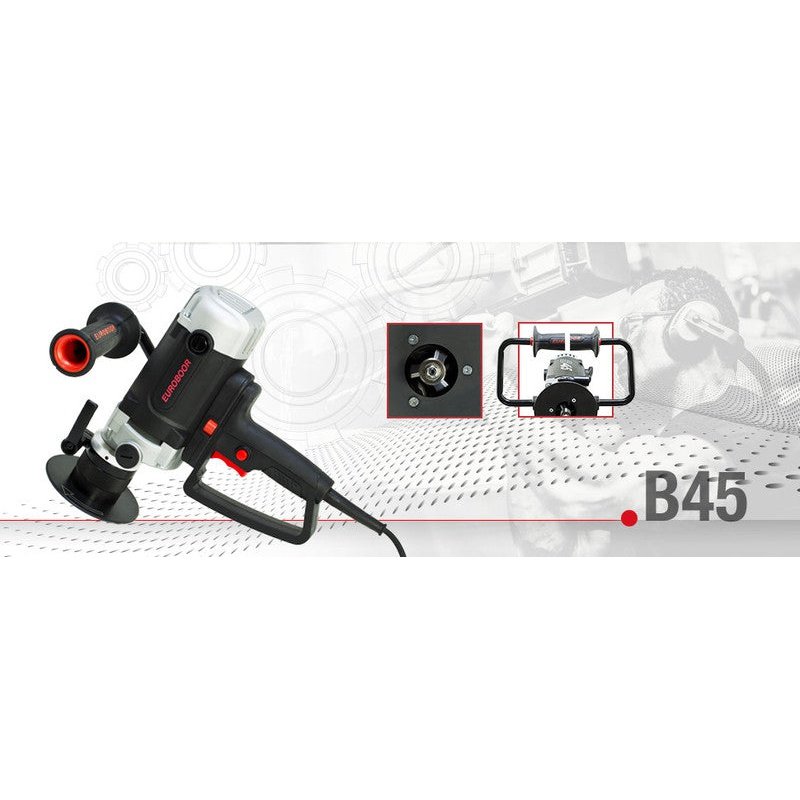

B45 BEVELING MACHINE
The outstanding ergonomics provide optimum handling and safety. The powerful motor, strong gearing and premium electronics make sure the machine operates as quickly and stable as possible. The specially designed 3-edged milling heads are available in 45° radius and take care of creating perfect finishes with the greatest of ease.
Features
- Ergonomic main handle
- User-friendly controls
- Wide Spindle speed adjustment
- Range for varying materials
- Quick and easy bevel depth adjustment
- Clear bevel depth indication
- Precision 45° milling head with 3 cutting edges (incl. cutting plates)
- Soft-grip front handle (suitable for left- and right handed users)
Motor
- Electronic speed stabilization
- Overheat protection
- Anti-kickback and -breakthrough torque control (“slow start”)
Technical Data
MOTOR POWER | 1500 Watt |
VOLTAGE | 220-240 V |
RATED FREQUENCY | 50-60 Hz |
SPINDLE SPEED | Adjustable 2000-6000/min |
BEVEL ANGLE | 45° - (optional 30°) |
SPINDLE THREAD | M12 X 1.5 |
MAX. BEVEL DEPTH | 6 mm 45° |
MIN. DIAMETER INSIDE BEVELS | 20 mm |
DIMENSIONS | 35,5 x 20 x 28.3 cm (L X W X H, machine) |
48,5 x 18 x 40.5 cm (L X W X H, packaging) | |
WEIGHT | 4.6 kg (machine) |
