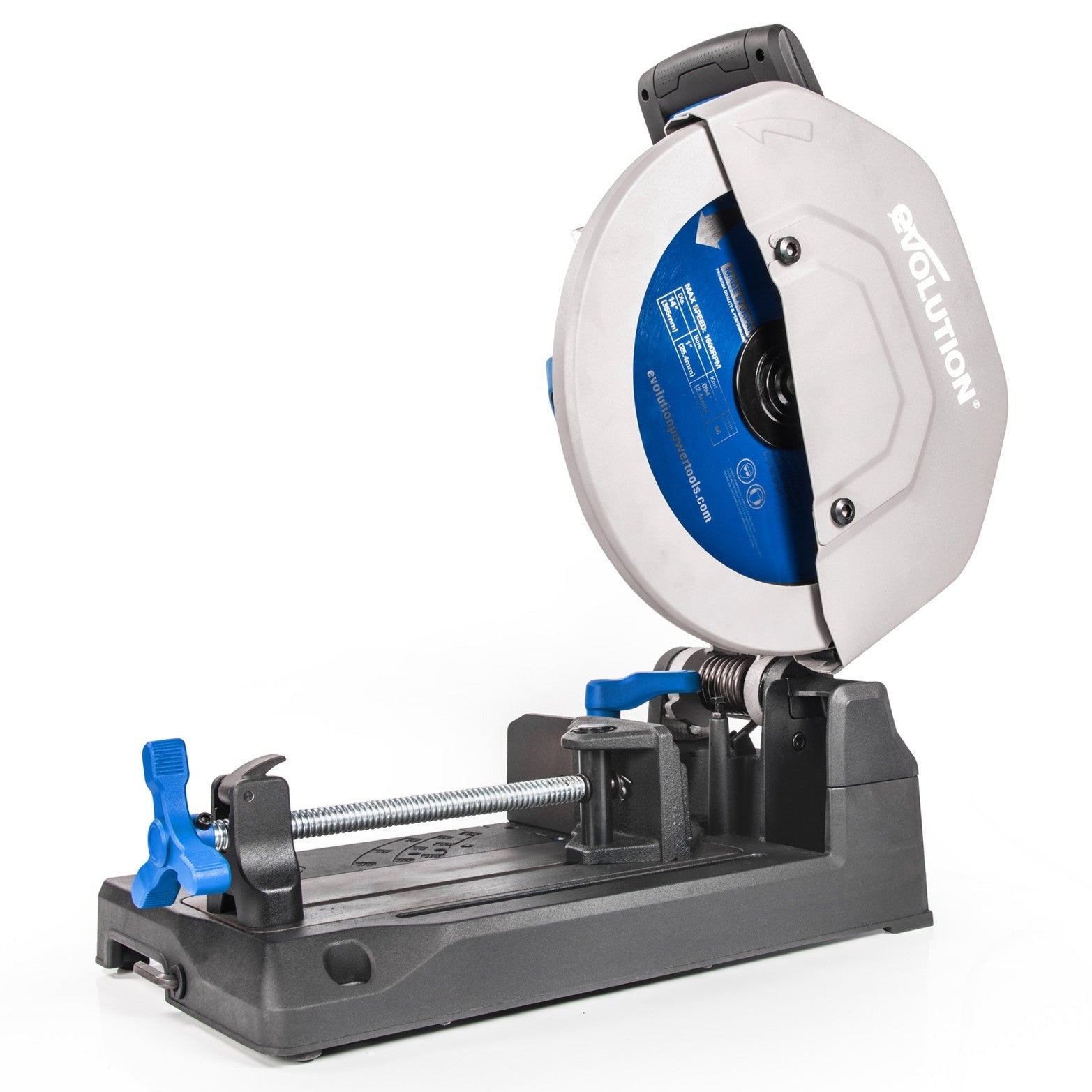

EVOLUTION EVO 355 RAPTOR METAL COLD CUT SAW

Advantages of Raptor cold cut saw:

Integrated handle
Ergonomic, symmetrical handle reduces operator fatigue
Oilite bushings and solid shaft increase accuracy with smooth operation and no backlash

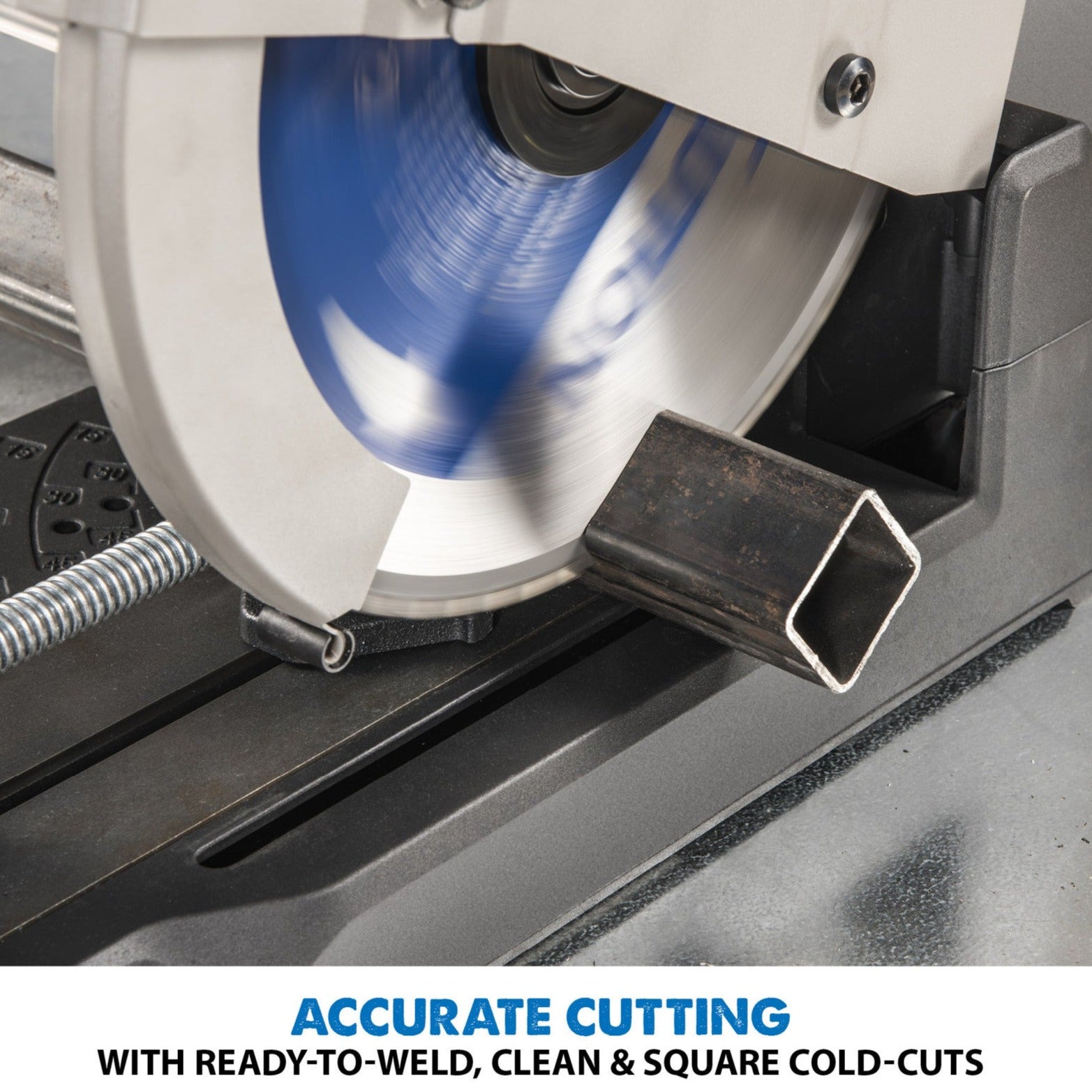

Instant editable cut. No reworking required.
Head locking pin
Adjustable 3-position fence with miter functionality
Bench mounting holes in the base
Heavy-duty one-piece cast aluminium alloy base with coated steel wear plate for longer service life
Mitre angles are cast into the base for clear angle adjustment
Cast iron base and vice for safe and precise clamping of workpieces
Quick 45° angle adjustment with locking pin
Quick-release clamp for fast clamping of any workpiece
Heavy 20 mm square threaded rod
Allen spanner included and the possibility to store it in the machine
V-block adapter for safe clamping of round pipe

Integrated chip collector with high capacity chip tray
Visibility shield guides chips away from the user

Specifications :

Motor (230v)  : 2200W

Max box section (6mm Wall) 90º: 120 x 120mm

Max square (6mm Wall) 45º: 89 x 89mm

Rectangle (6mm Wall) 90º: 95 x 180mm

Rectangle (6mm Wall) 45º: 78 x 110mm

Round (6mm Wall) 90º: 130mm

Round (6mm Wall) 45º: 105mm

Speed (No Load): 1450min

Weight: 23kg

Blade Dimensions : Maximum Diameter: 355mm Bore Diameter: 25.4mm Thickness: 2.4mm

Supplied With Machine: 1 x 355 mm Mild Steel Blade, Jig plate, 8mm Hex key
