FESTOOL CTM 36 E M CLASS DUST EXTRACTOR

The true size can be found inside.

Compact but large. Light but powerful. Whether it's used on the construction site or in the workshop, thanks to its huge container capacity of 36 l, the CLEANTEC CTM 36 provides maximum volume with compact dimensions. Equipped with swivelling castor wheels and rear wheels for optimum mobility. It also has a locking brake that provides stability on any surface as well as during transport. The flat filter fully integrated in the suction head ensures the full volume is utilised: This means that the gross and net container volumes are virtually identical. The extremely compact high-performance turbine provides the right suction power. A 3900 l/min volume flow means that nothing remains except clean air. Approved for dusts in dust class M.

• Smooth suction hose and optimised SYS-Dock with cord holder and T-LOC function for conveniently connecting SYSTAINERs to the mobile dust extractor
• Constantly high suction because of the compact high performance turbine
• Antistatic function prevents static developing during work
• Attachment of Systainers via SYS-Dock
• Hose garage and cable windup for greater tidiness and safety
• Economical because of the optimal use of the available volume with a SELFCLEAN filter bag in the container
• container/filter bag capacity 36/34 l
• approved for dust class M

Main applications

• For dust with limit values > 0.1 mg/m³
• Flexible and clean in the workshop and on-site thanks to compact design
• Integral automatic electronic switch-on/shut-off for extraction from electric power tools
• Suitable for both wet and dry extraction

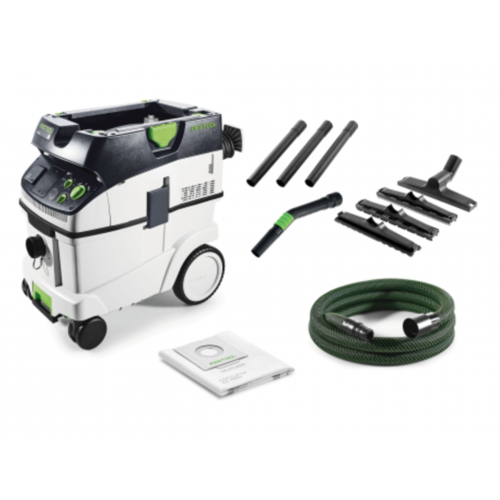

Items included CTM 36 E

• SELFCLEAN filter bag
• smooth suction hose dia. 27/32 x 3.5 m AS/CT
• end cap for intake adapter
• hose holder
• SYS-Dock with T-LOC function
• cable holder
• in carton

Technical data

• Max. volume flow : 3900.00 l/min
• Max. vacuum : 24000.00 Pa
• Filter surface area:  6318.00 cm²
• Rubber-insulated mains cable: 7.50 m
• Container/filter bag capacity: 36/34 l
• Max. appliance socket connected load  2400.00 W
• Dimensions (L x W x H) : 630 x 365 x 540 mm
• Power consumption : 1 200 W
• Weight : 13.90 kg
