Power and ease of operation in perfect harmony
- Pure precision: rigid base plate due to guide columns on both sides
- Short set-up times: Rocker and ratchet principle for convenient cutter changes
- Routing depth adjustment to 1/10 mm
- Quick-acting brake and MMC electronics
- Tool-less copying ring changes
- Up to 99 % dust extraction when routing with chip deflector and dust extraction hood
Main areas of use:
- Rounding, chamfering, rebating and profiling edges
- Routing circles and cut-outs with the multi-routing template
- Grooving rear panels or recessing dovetail batons with the guide system
- Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
- Routing mineral material (max. cutter 45 mm)

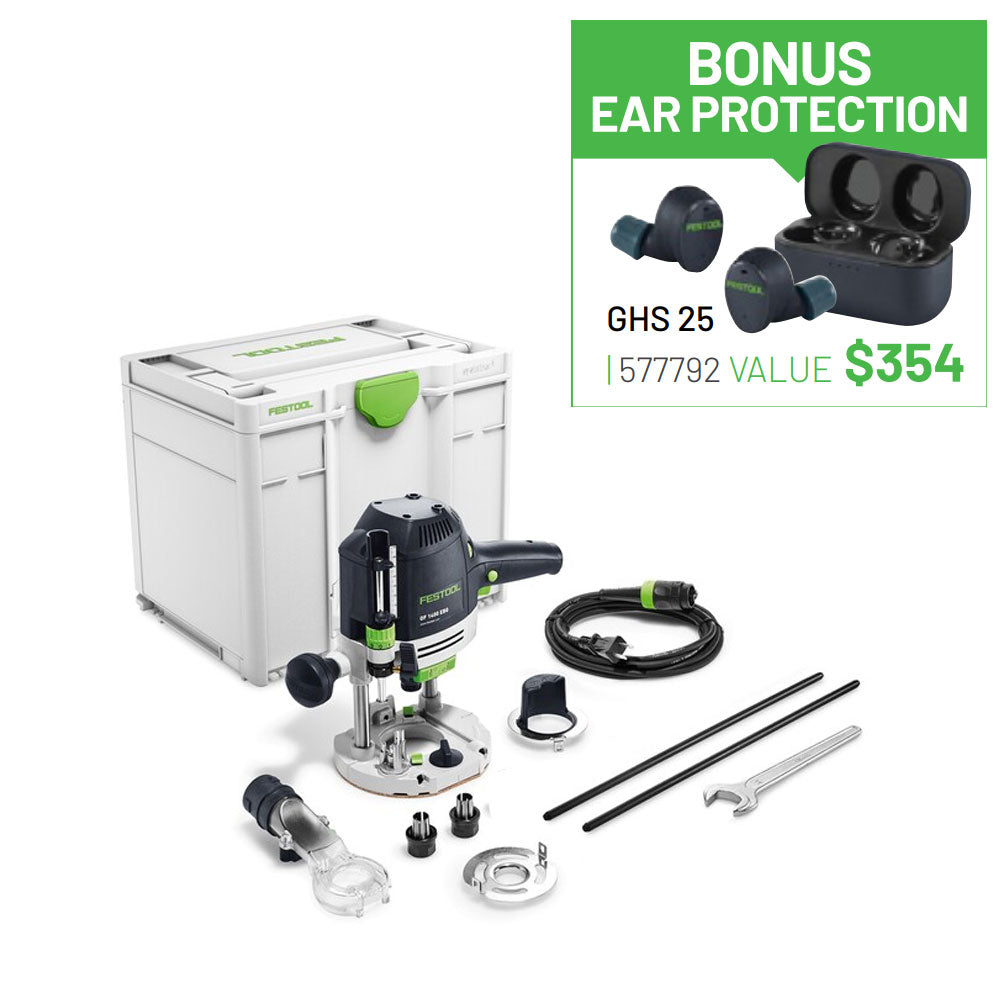

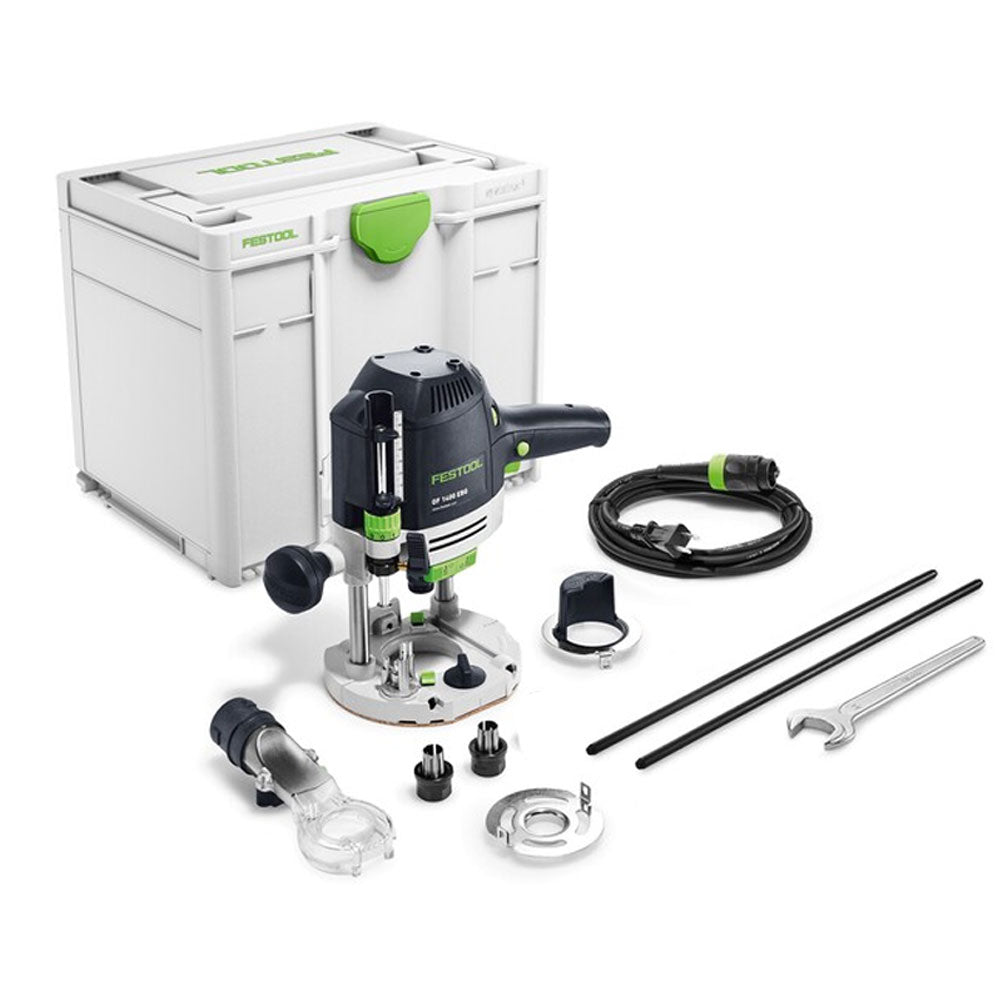

Items Included:
- 8 mm clamping collet
- 12 mm clamping collet
- side stop with fine setting
- copying ring 30 mm
- extraction hood, top
- chip deflector
- operation tool
- in SYSTAINER SYS 4 T-LOC
Technical data:
Power consumption: | 1400 W |
---|---|
Idle engine speed: | 10000 - 22500 /min |
Collet dia: | 6 - 12.7 mm |
Routing stroke: | 70 mm |
Routing depth fine adjustment range: | 8 mm |
Max. cutter diameter: | 63 mm |
Dust extraction connection dia: | 27/36 mm |
Weight: | 4.5 kg |
