ITEM NO: AAEB series
Chrome Vanadium Steel Material
High torque performance as over 1.6 times as ANSI & DIN standard
Professional quality for maximum durability and corrosion resistance
Satin Chrome Finished
METRIC
Â

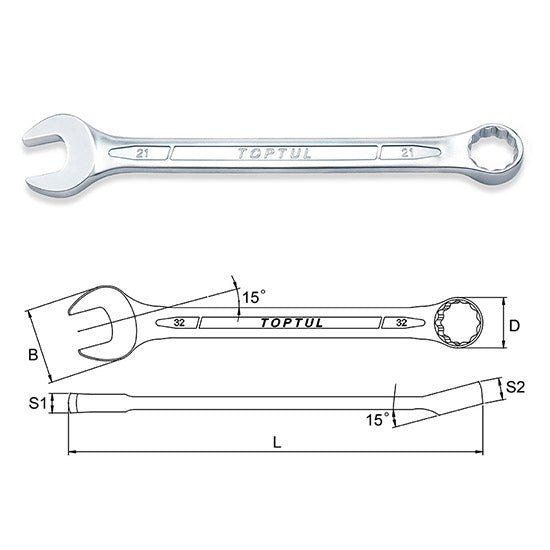

ITEM NO. |
SIZE (mm) |
L (mm) |
B (mm) |
D (mm) |
S1 (mm) |
S2 (mm) |
Satin |
AAEB0606 |
6 |
109 |
14.5 |
10.2 |
3.5 |
5.3 |
AAEB0707 |
7 |
119 |
16.3 |
11.2 |
3.6 |
5.3 |
AAEB0808 |
8 |
129 |
18.7 |
12.7 |
4.0 |
5.8 |
AAEB0909 |
9 |
139 |
20.8 |
14.0 |
4.1 |
6.6 |
AAEB1010 |
10 |
149 |
22.7 |
15.1 |
4.6 |
7.0 |
AAEB1111 |
11 |
159 |
24.7 |
16.7 |
5.0 |
7.5 |
AAEB1212 |
12 |
169 |
27.2 |
17.9 |
5.1 |
8.1 |
AAEB1313 |
13 |
179 |
28.8 |
19.7 |
5.8 |
8.7 |
AAEB1414 |
14 |
189 |
31.4 |
20.6 |
6.0 |
9.0 |
AAEB1515 |
15 |
199 |
33.3 |
22.2 |
6.4 |
9.3 |
AAEB1616 |
16 |
209 |
35.1 |
23.7 |
6.6 |
10.0 |
AAEB1717 |
17 |
219 |
37.6 |
24.9 |
6.8 |
11.0 |
AAEB1818 |
18 |
229 |
39.6 |
26.5 |
7.6 |
11.5 |
AAEB1919 |
19 |
239 |
41.4 |
27.9 |
7.8 |
12.2 |
AAEB2020 |
20 |
249 |
44.2 |
29.7 |
8.1 |
12.5 |
AAEB2121 |
21 |
259 |
46.2 |
30.7 |
8.4 |
12.8 |
AAEB2222 |
22 |
269 |
48.3 |
32.1 |
8.8 |
13.2 |
AAEB2323 |
23 |
279 |
49.9 |
33.5 |
9.0 |
13.5 |
AAEB2424 |
24 |
289 |
51.5 |
34.2 |
9.4 |
13.5 |
AAEB2525 |
25 |
299 |
54.7 |
36.7 |
9.6 |
14.3 |
AAEB2626 |
26 |
309 |
56.4 |
37.2 |
9.8 |
15.0 |
AAEB2727 |
27 |
319 |
58.8 |
39.5 |
10.2 |
16.5 |
AAEB2828 |
28 |
329 |
59.5 |
40.6 |
10.6 |
17.0 |
AAEB2929 |
29 |
339 |
61.0 |
41.6 |
10.8 |
17.5 |
AAEB3030 |
30 |
349 |
63.1 |
43.2 |
11.1 |
18.5 |
AAEB3232 |
32 |
369 |
67.4 |
44.7 |
11.6 |
19.5 |
AAEB3333 |
33 |
409 |
69.8 |
48.7 |
12.6 |
19.5 |
AAEB3434 |
34 |
409 |
69.8 |
48.7 |
12.6 |
19.5 |
AAEB3535 |
35 |
409 |
69.8 |
48.7 |
12.6 |
19.5 |
AAEB3636 |
36 |
439 |
73.8 |
52.7 |
13.6 |
20.5 |
AAEB3838 |
38 |
439 |
73.8 |
52.7 |
13.6 |
20.5 |
AAEB4040 |
40 |
479 |
83.8 |
60.7 |
15.6 |
21.5 |
AAEB4141 |
41 |
479 |
83.8 |
60.7 |
15.6 |
21.5 |
AAEB4242 |
42 |
479 |
83.8 |
60.7 |
15.6 |
21.5 |
AAEB4343 |
43Â |
479 |
83.8 |
60.7 |
15.6 |
21.5 |
|
