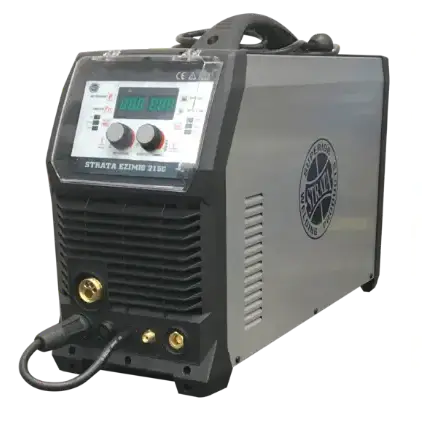

Strata EziMig 215C 200A Compact Synergic Inverter MIG Welder (15A Plug)

Strata EziMig215C 200A Multi-Process Welder - Your Ultimate Industrial Companion

Elevate your welding experience with the Strata EziMig215C 200A Multi-Process Welder, a powerhouse designed for industrial professionals seeking top-tier performance. Packed with the latest IGBT inverter technology, this welder undergoes extreme stress testing to 440V, ensuring it's built to last in the toughest conditions.

With an ultra-compact aluminum chassis and IP23 industrial rated protection, portability and durability are at the forefront. The welder offers a range of adjustable features, including pre-flow, post-flow, burn-back, and soft-start, allowing for precise and smooth welding.

Whether you're engaging in MIG, MMA, or TIG welding, the EZIMIG 215C has you covered. The lift TIG function adds versatility, while the adjustable wave form (inductance) provides greater arc control. Generator-friendly with a 10KVA capacity, this welder is ready for on-the-go projects.

Included accessories, such as the earth lead, MMA lead, MIG torch, flowmeter, and more, make this a comprehensive solution for your welding needs. Backed by a 24-month warranty, the Strata EziMig215C 200A Multi-Process Welder is your ultimate industrial companion for efficient and reliable welding.

Key Features:

• Latest IGBT inverter technology for superior performance
• Compact and lightweight aluminum chassis for portability
• IP23 industrial rated protection ensures durability
• Single phase, 230V, 15A input power for versatile use
• Adjustable pre-flow, post-flow, burn-back, and soft-start for precise welding
• MIG, MMA, and TIG welding capabilities with lift TIG function
• Adjustable wave form (inductance) for enhanced arc control
• Generator friendly (10KVA) for on-the-go welding
• Accessories include 3m earth lead, 4m MMA lead, Binzel style MIG torch, flowmeter, and more

Specifications:

• Dimensions: 550x215x415mm
• MMA O/C Voltage: 58V
• Weight: 20.5kg
• Input Power Supply: 230V AC 15A 50/60Hz
• Maximum Input Current: 42A
• Mig Output Voltage: 16V-27V
• Mig Output Current: 40-200A
• MIG Duty Cycle: 200A@25%, 155A@60%, 120A@100%
• Wire Feeding Speed: 1.5 - 16.5m/min
• MMA Current Output: 10A-160A
• MMA/TIG Duty Cycle: 160A@15%, 140A@60%, 110A@100%
• Insulation Class: IP23
• Power Efficiency: 85%
• Power Factor: 0.65
• Standards: EN60974-1:2012
• Mig Wire Spool Size: D200mm/D300mm 15KG
• MMA Rod Size: 1.6-5.0mm
• Warranty: 24 months

What's Included:

• 3m earth lead with heavy-duty earth clamp
• 4m MMA lead with heavy-duty twist lock electrode holder
• Binzel style MT250-40ER MIG torch
• 2-stage flowmeter
• Argon gas regulator and adapter
• 4m gas hose
• Gas inlet quick connector
• Hose clamps
• 'V' Groove MIG drive rollers (0.6-0.8mm & 0.9-1.0mm)
