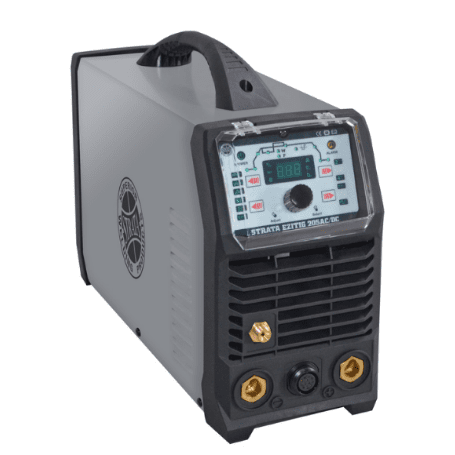

Strata EziTIG205ACDC 200A AC/DC Pulse TIG/MMA Inverter Welder (15A Plug)

Strata EziTig205ACDC - Precision 200A AC/DC Inverter TIG/MMA Welder

Product Description: Unleash the power of precision welding with the Strata EziTig205ACDC, a 200A AC/DC Inverter TIG/MMA Welder. Engineered with IGBT inverter technology, this welder delivers smooth and stable welding output, ensuring increased reliability for both TIG and MMA applications. Encased in an industrial IP23 casing with front panel protection, this lightweight and compact welder is designed for portable use, making it ideal for various applications.

Key Features:

• IGBT Inverter Technology: Ensures a smooth and stable welding output, enhancing reliability.
• Industrial IP23 Casing: Resists damage, moisture, and corrosion, providing durability in challenging environments.
• Microprocessor Control System: Delivers superior and dynamic arc characteristics for precise welding.
• Compact & Lightweight Design: Ideal for portable applications, facilitating ease of use in different work settings.
• Extreme Stress Testing: Endures production stress tests up to 440V, ensuring rugged reliability.
• Versatile MMA Welding: Offers great control and user-friendly features with adjustable arc force, hot start, and auto anti-stick control.
• Lift TIG and HF Start Modes: Provides versatility when welding around sensitive electronic equipment.
• Electronic HF TIG Arc Ignition: Contamination-free and easy arc starting with low EMF interference.
• Spot Welding Function: Comes with 2T/4T trigger control for added flexibility.
• Durable & Reliable Construction: Utilizes high-quality and over-specified electronic components for longevity.
• Intelligent Protection System: Equipped with temperature, voltage, and current sensors for increased safety and reliability.
• Generator Compatibility: Designed to work with a generator power supply with protection from power surges.
• Multi-PCB Construction: Economical for service and repair compared to a single PCB design.
• Optional Remote Control: Offers Potentiometer torch/foot pedal remote control with fingertip remote control. All remote functions connect through a single plug 12-pin connection.
• Quick Connect Inlet Gas Fitting: Enhances convenience for easy setup.

Includes:

• 3m Earth lead with heavy-duty earth clamp
• 4m MMA lead with heavy-duty twist-lock electrode holder
• Strata Professional TIG torch
• 2-stage flowmeter
• Argon gas regulator
• 4m gas hose
• Gas inlet quick connector
• Hose clamps

Specifications:

• Dimensions: 455x305x145mm
• Weight: 8.5kg
• Input Power Supply: 230V AC 15A 50/60Hz
• Input Power Tolerance: ±15%V
• Maximum Input Current: 32A
• Generator Capacity: 10KVA
• MMA O/C Voltage: 52V
• MMA Current Output: 10A-170A
• MMA/TIG Duty Cycle: 170A@14%, 140A@60%, 110A@100%
• TIG Current Output: 10-200A
• DC TIG Duty Cycle: 170A@29%, 140A@60%, 110A@100%
• Insulation Class: IP23
• Power Efficiency: 85%
• Power Factor: 0.7
• Standards: EN60974-1:2012
• MMA Rod Size: 1.6-4.0mm
• Warranty: 24 months
• AC Frequency: 60Hz
• AC TIG Waveform: Square wave
• TIG Upslope/Down Slope Adjustment: 0-10S
• TIG Gas Post Flow/Pre Flow Adjustment: 0-2/0-10S
• TIG Pulse Frequency: 0.5-200Hz
• TIG Pulse Width Range: 5-95%
• AC TIG Duty Cycle: 200A @ 24%, 155A@60%, 120A @100%
