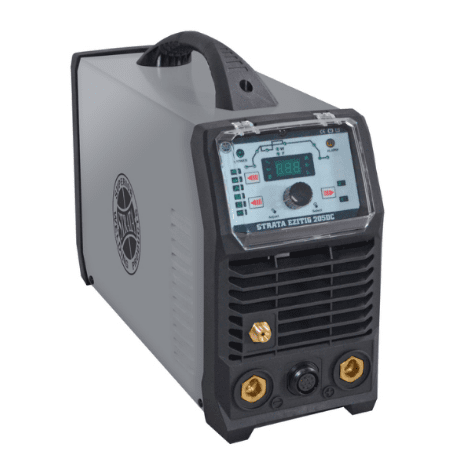

Strata EziTig205DC 200A DC Pulse TIG/MMA Inverter Welder (15A Plug)

Strata EziTig205DC - 200A DC Inverter TIG/MMA Welder - Precision Welding, Anywhere You Go

Product Description: Unleash the power of precision welding with the Strata EziTig205DC, a 200A DC Inverter TIG/MMA Welder designed for excellence. Packed with the latest IGBT inverter technology and rigorously stress-tested to 440V with IP23 protection, this welding machine is built to endure the toughest conditions of the New Zealand work environment.

Key Features:

• IGBT inverter technology for smooth & stable welding output, ensuring increased reliability
• Industrial IP23 casing with front panel protection, resisting damage, moisture, and corrosion
• Microprocessor control system for superior and dynamic arc characteristics
• Lightweight & compact design, making it ideal for portable applications
• Extreme stress-tested up to 440V during production, ensuring rugged reliability
• MMA welding with adjustable arc force, hot start, and auto anti-stick control for great control and ease of use
• Lift TIG and HF start modes for versatility when welding around sensitive electronic equipment
• Electronic HF TIG arc ignition system, contamination-free and easy arc starting with low EMF interference
• Spot welding function with 2T/4T trigger control
• Durable and reliable with high-quality & over-specified electronic components
• Intelligent protection system with temperature, voltage, and current sensors for increased reliability and safety
• Designed to work with generator power supply with protection from power surges
• Multi-PCB construction for economical service and repair compared to a single PCB design
• Potentiometer torch/foot pedal remote control with digital up/down button remote control and wireless remote-control options (Optional wired foot control available)
• All remote functions connect through a single plug 12 pin connection
• Quick connect inlet gas fitting

Accessories Included:

• 3m Earth lead with a heavy-duty earth clamp
• 4m MMA lead with HD twist lock electrode holder
• Strata Professional torch
• 2-stage flowmeter
• Argon gas regulator
• 4m gas hose
• Gas inlet quick connector
• Hose Clamps

Specifications:

• Dimensions: 410x146x278mm
• Weight: 7kg
• Input Power Supply: 230V AC 15A 50/60Hz
• Input Power Tolerance: ±10%V
• Maximum Input Current: 43A
• Generator Capacity: 10KVA
• MMA Current Output: 5A-200A
• MMA O/C Voltage: 89V
• MMA/TIG Duty Cycle: 200A@15%, 150A@60%, 115A@100%
• TIG Current Output: 5-200A
• TIG Duty Cycle: 200A@20%, 155A@60%, 120A@100%
• TIG Upslope/Down Slope Adjustment: 0-2/0-10S
• TIG Pulse Frequency: 0.5-200Hz
• TIG Pulse Width Range: 5-95%
• Insulation Class: IP23
• Power Efficiency: 85%
• Power Factor: 0.75
• Standards: EN60974-1:2012
• MMA Rod Size: 1.6-5.0mm
• Warranty: 24 months
